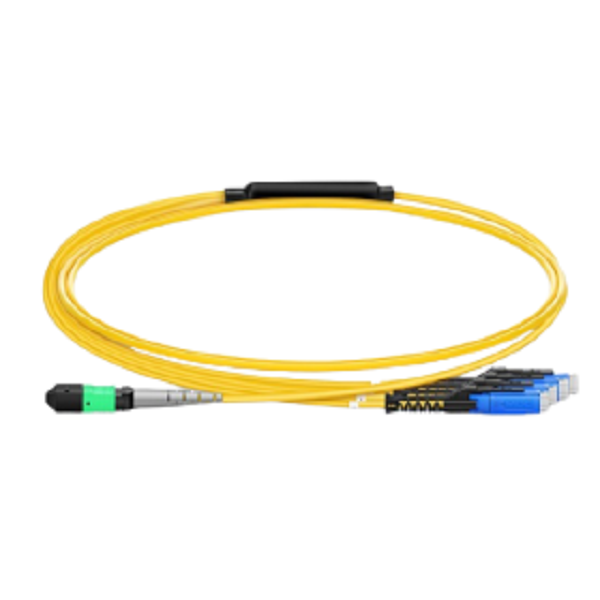

1m (3ft) MTP® Female to 4 MDC UPC Duplex 8 Fibers Type B Plenum (OFNP) OS2 9/125 Single Mode Elite Breakout Cable, Supplier in Doha Qatar

MTP to MDC breakout cable enables one QSFP-DD, QSFP28 or QSFP transceiver to be connected to MDC patch panels or cassettes. With MDC, the port density can be tripled compared to LC duplex per 19″ height unit and thus decisively save space in the rack. Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors. Description Connector A US Conec MTP Female (Pinless) Connector B US Conec MDC UPC Fiber Mode OS2 SMF 9/125μm Wavelength 1310nm MTP Connector IL 0.35dB Max (0.15dB Typ.) MDC Connector IL ≤0.3dB MTP Connector RL ≥60dB MDC Connector RL ≥50dB Cable Jacket Plenum (OFNP) Fiber Count 8 Fibers Jacket OD 3.0mm Fan-Out Diameter 2.0mm Installation Tensile Load 100 N Long-Term Tensile Load 50 N Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
